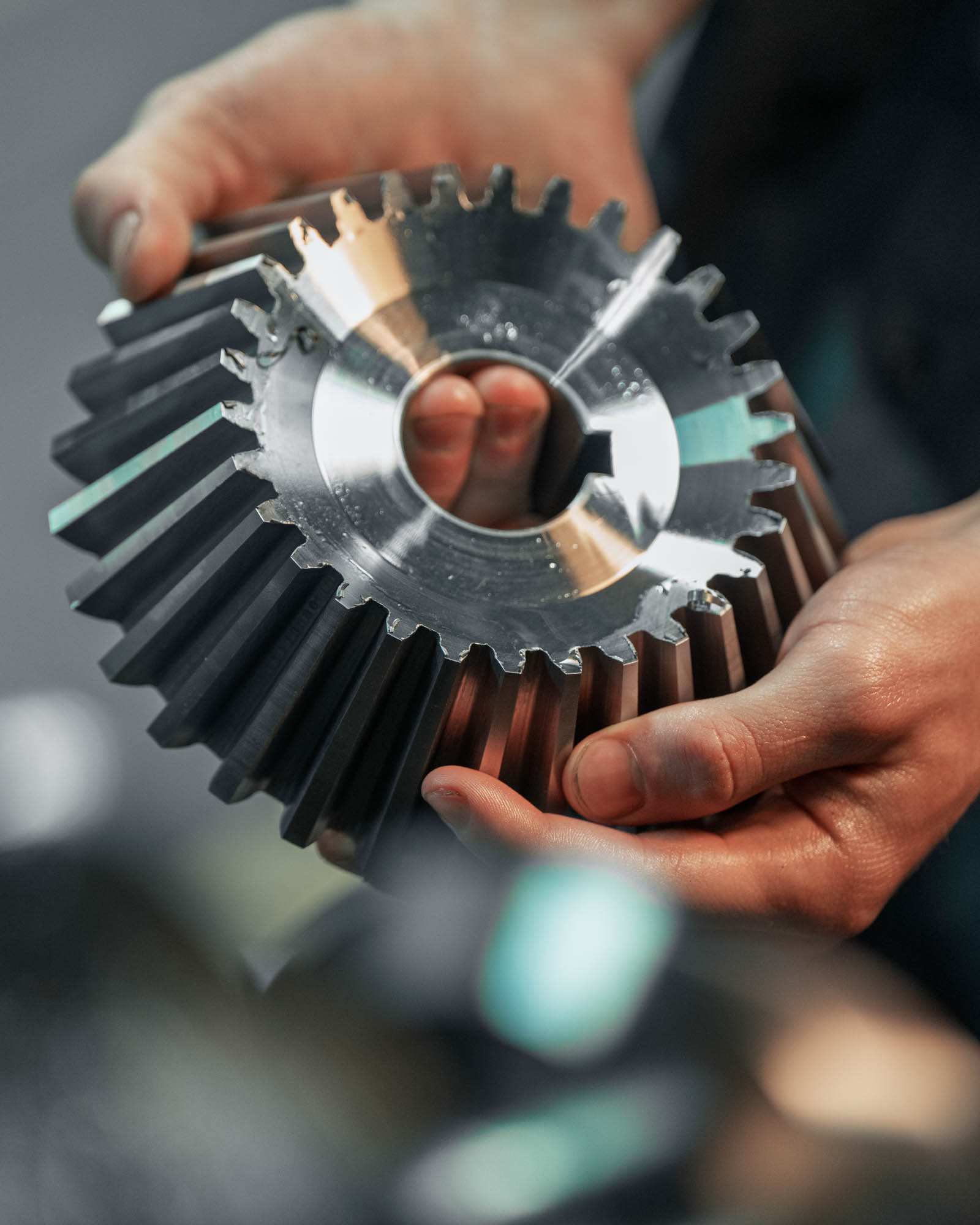

Bevel Gear Cutting
Atlas Gear Company provides straight bevel gear cutting for prototype parts, custom components, and expedited manufacturing. We cut straight-tooth bevel gear and shaft features to your specifications for power transmission applications.
Technology

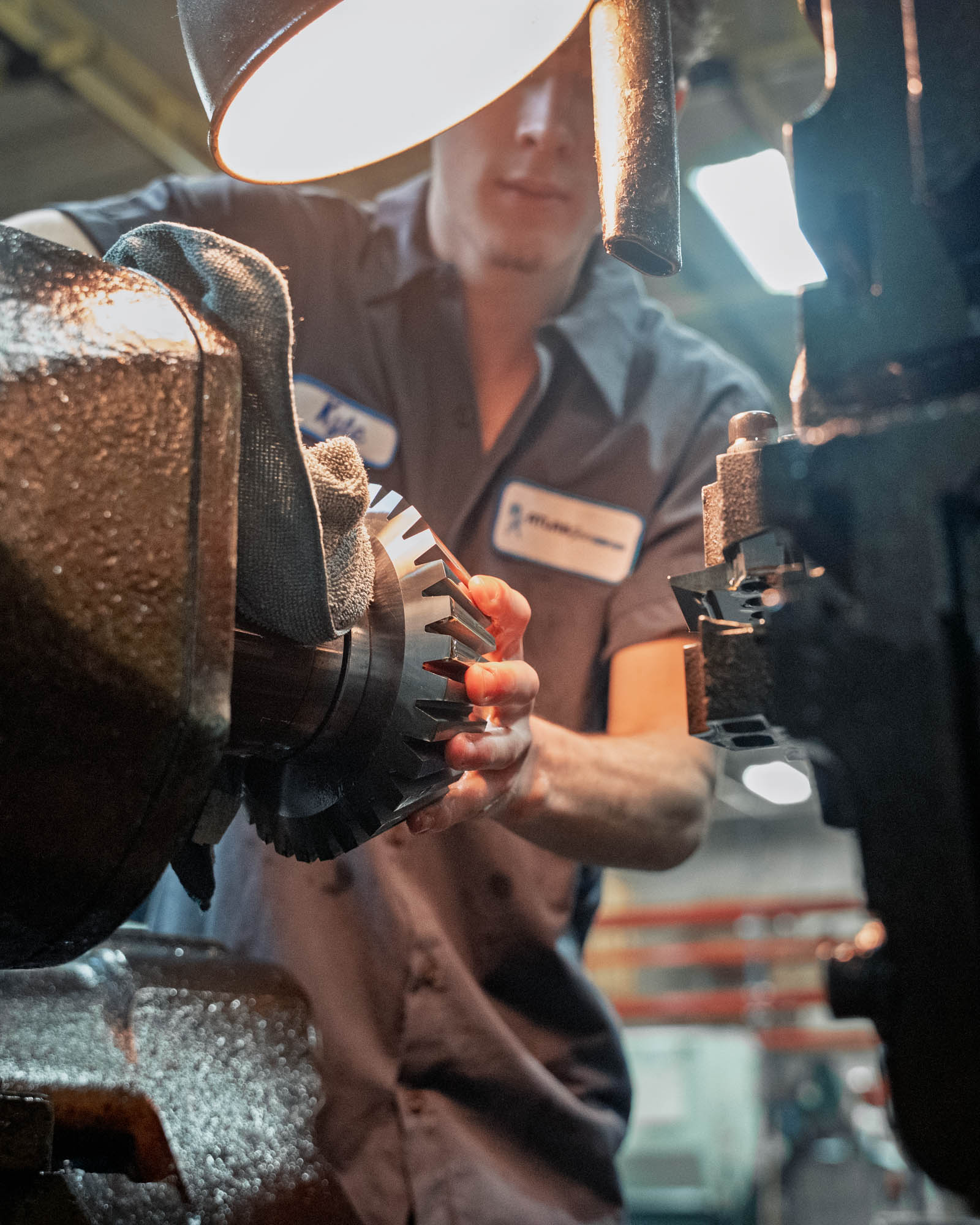

We utilize Gleason straight bevel generators to produce bevel gears from 1/2" to 20" in diameter, with diametral pitches from 24 to 3. Our motorized Gleason testing equipment matches tooth contact patterns, verifies backlash and mounting distances, and assesses noise levels in gearboxes, allowing us to match parts to each other or to master gears.
Gleason 12B Coniflex Bevel Gear Generator
Gleason 12A Coniflex Bevel Gear Generator
Gleason 12B Coniflex Bevel Gear Generator
Gleason 12A Coniflex Bevel Gear Generator
Key Bevel Cutting Operations
2.5 DP Cutting Capabilities
2.5" Face Width Accommodation
2.5" Face Width Accommodation
Part quality has been our top priority for over 70 years, because your equipment depends on accuracy, consistency, and long-term reliability.
With in-house ISO 9001 inspection, part quality is never a question. It’s a guarantee.
Discuss your part prints with an engineer.
Schedule a call today to get started on a gearbox component manufacturing quote. Send prints or models, target quantities, material requirements, and any inspection or documentation needs.
